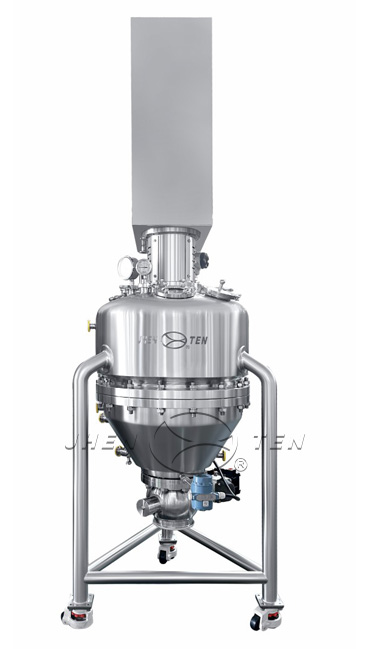

Conical Bottom Agitated Filter Dryer

Model: JTNB-T

Brand: JHENTEN

Detail Description

ADVANTAGE

◆Excellentproduct discharge performance with negligible product hold-up due to theconical bottom,
◆Close agitator to wall /bottomclearances and a unique agitator
design.
◆Theagitator permits uniform mixing of the entire product mass, without theformation of lumps or balls. The slow rotation of the agitator minimizes theshear forces applied to the product, thus limiting mechanical and thermalproduct degradation, maintaining the products original crystal structure.
◆The surface area for heattransfer is maximized for optimum
performance and cycle times.
◆In compliance with cGMP andFDA guidelines, also in aseptic
/steam sterilizable versions:
◆Agitatorsupported by the top head, with the seal in contact with the vapors only.
◆Entirely welded agitatordesign, without any bolts, with all edges
rounded for good cleanability.
◆Excellentcleanability using CIP Systems, with simple validation process.

FEATURES

Design Code	GB/ASME/PED/AD2000 etc.
Product volume	135-14000 liters
Operating temperature	-10 to 151°C (15 to 300°F) or per requirements
Operating pressure	-1 to +6 bar (g) (FV to90 psig) or per requirements
Product wetted material	Stainless steels,Duplexstainless, Nickel based alloys such asHastelloy C22/C276, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings inFFKM or FEP encapsulated
Area classification	GB/ATEX/UL/GOST
Heated areas	All product wettedcomponents,dust collector, including agitator shaft and blades
Accessories	Dust filterwith automatic backcleaning, sampling valve,CIP system, sightglass with lamp,vacuum system with condenser, heating and cooling unit etc.
Controls	Control cabinet, HMI,MCC, interface for DCS, can realize computer verification.
Documents	DQ,IQ,OQ,PQOperate manual,DQ,IQ,OQ,PQ

SELECTION FORM

Model	Diameter (mm)	Filter area (m2)	Full volume (m3)	Equipment width (mm)	Totalheight of equipment (mm)	Motor power (kw)	Equipment net weight (T)
JTNB-T550	550	0.4	0.135	750	1850	According to the nature of the material, choose between 3-55KW	0.7
JTNB-T700	700	0.7	0.32	1100	2500		1
JTNB-T1000	1000	1.4	0.87	1280	2850		2.3
JTNB-T1200	1200	2.1	1.5	1630	3500		2.7
JTNB-T1400	1400	3	2.5	1850	4150		3.5
JTNB-T1600	1600	3.8	3	1900	4200		4.3
JTNB-T1800	1800	4.8	5	2300	4800		5.7
JTNB-T2000	2000	6.1	6.2	2500	5800		8.4
JTNB-T2200	2200	7.3	8.5	2700	6300		10
JTNB-T2400	2400	8.8	10.8	3000	6800		13.6
JTNB-T2600	2600	10.2	14	3200	7200		17

Note: Equipment of different specifications can be designed according tothe special needs of users.
