Cartridge Filtration
Large Flow Liquid Filter
Model: JTGHF
Brand: JHENTEN
Super large industrial-Grade Filter
Detail Description
JTGHF industrial-grade liquid filter mainly used in some larger flow situation, especially water treatment field. JTGHF big flow liquid filter has characteristic of big connect size ,high flux and small occupation area. Can effectively solve the traditional filter problem high costs input, the long replacement time, trouble operation and so on.
JTGHF big flow liquid filter have two installation types like vertical and horizontal. 20', 40' filter filter usually adopt vertical structure, the flow of medium system more than 1000T/H. Choose horizontal structure and equipped with 60" filter cartridge, meet the large flow rate at the same time to reduce the the number of times of cartridge replacement. It is more convenient to replace filter.
Feature
Super large flow, small occupation area, high efficiency
304 and 316 l stainless steel are available, good corrosion
resistance, can meet the requirements of various fields.
Vertical and horizontal structures can be choosed.
Application
Mainly used in some larger flow situation, especially water treatment field
Surface Finish
Treatment type |
Mechanical polishing, |
Polishing Precision |
Inner surface Ra≤0.3μm , |
Operating Conditions
Max Operating pressure | 0.6MPa |
Max Operating Temp. | 150℃ |
Material
Filter shell | 304, 316L |
Vent valve, Drainvalve | 304, 316L |
Eyebolt | 304 |
Stabilizer blade | 304 |
Sealing ring, gasket | EPDM, PTFE, Viton, Silicone |
Connection
Shell connection | Flange ( Eyebolt) |
Inlet /outlet N1, N2 | Tri-clamp, flange |
Pressure gauge N3 (optional) | 1”/1.5” Tri-clamp |
Drain valve N5 (optional) | 1” Tri-clamp |

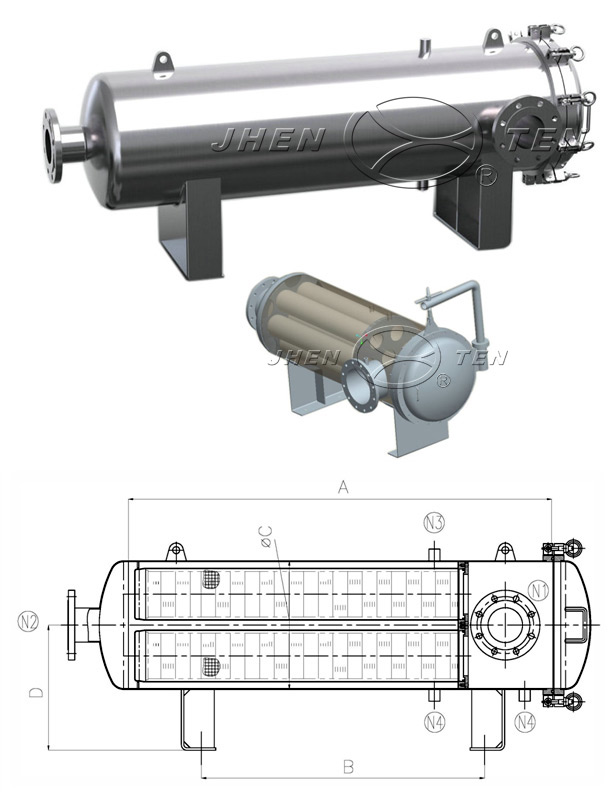

Dimension Parameters | 1pc | 2pcs | ||||
20” | 40” | 60” | 20” | 30” | 40” | |
A：Shell length (exclude head) | 700 | 1200 | 1700 | 800 | 1300 | 1800 |
B：Support center distance | 300 | 600 | 900 | 400 | 700 | 1000 |
C：Diameter | Φ230 | Φ400 | ||||
D：The height form In-outlet N1, N2 | 355 | 395 | ||||
In-outlet N1, N2 dimension | 2”/2.5”/3” | 3”/4”/5” | ||||
The above-mentioned data is the standard, it can customizeaccording to customer's requirements.
Selection Table
［Type of |
［Model |
［Type |
［Filter | ［Shell material］ |
［In-outlet | ［O-ring］ | |
JTGHF | L | 2R | 20 | S | 4 | K | E |
L=Vertical | 1R=1pc | 20=20” cartridge | S=226 type | 4= 304 | K= Tri-clamp | E=EPDM | |
W=Horizontal | 2R=2pcs | 40=40” cartridge | T=222 type | 6= 316L | F=Flange | P=PTFE | |
3R=3pcs | 60=60” cartridge | D=DOE type | L=Thread | V=Viton | |||
4R=4pcs | S=Silicone | ||||||
5R=5pcs |
